NOT AVAILABLE FOR ONLINE PURCHASE
This item is not sold through our online store. For orders and sizing requirements, please contact Flema directly.

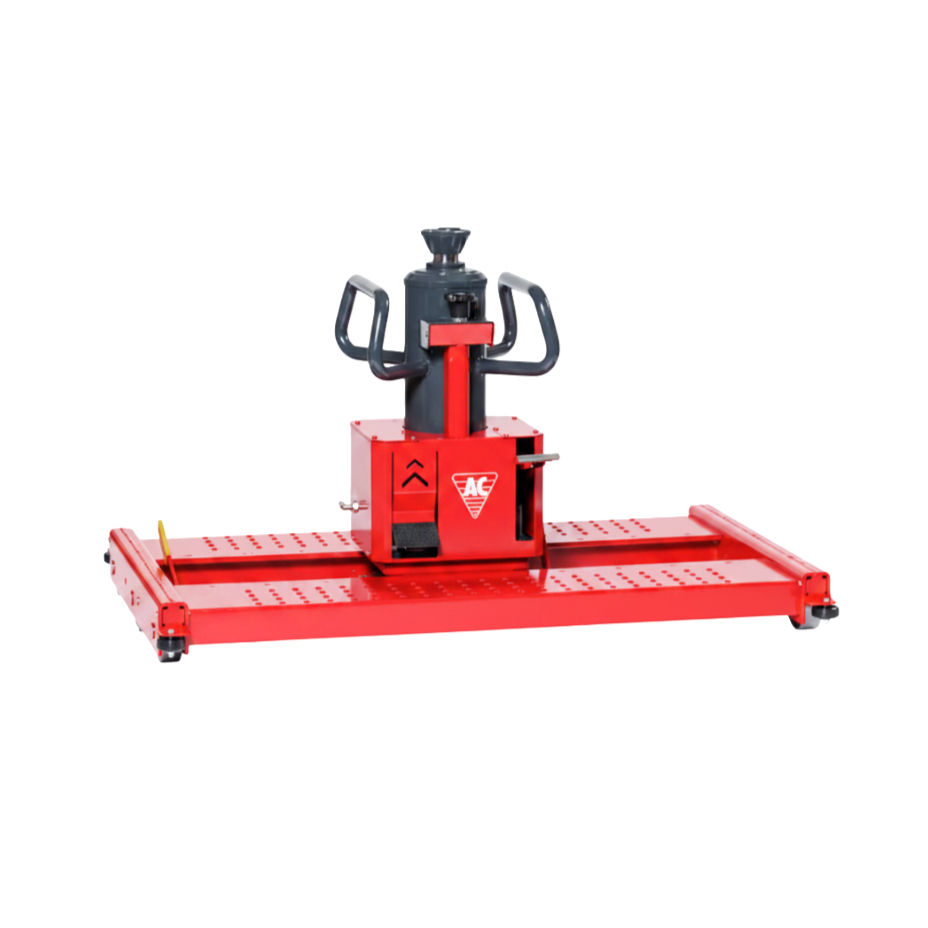

15 Ton Floor Pit Jack [Model #GGD150U]
-
Air‑hydraulic floor pit jack with a traversing telescopic cylinder for extended reach.
-
Flexible design suitable for use inside pits or under vehicle lifts.
-
Traversing cylinder provides wide under‑vehicle access and allows the mechanic to move freely along the pit.
-
Ideal for gearbox removal and installation thanks to the telescopic lifting action.
-
Spring‑loaded wheel supports prevent unintended movement when lifting loads above 800 kg.
-
Rapid, high‑speed air‑hydraulic unit ensures efficient lifting performance.
-
Built‑in manual foot pump allows precise, controlled adjustment.
-
Modern, ergonomic control panel positioned at comfortable working height.
-
Adjustable frame ensures compatibility with all pits.
-
Supplied with standard lifting configuration; accessories optional.
-
Model: GGD150U
Capacity: 15 Ton
Stroke: 50.59" (1285 mm)
Min Height: 36.22" (920 mm)
Max Height: 86.81" (2205 mm)
Traversing Cylinder Travel: 9.84" (250 mm)
Base Width: 33.27" (845 mm)
Base Depth: 42.32" (1075 mm)
Cylinder Diameter: 2.36" (60 mm)
Air Supply: 8–10 bar
Weight: 551.16 lbs
Warranty details for this product will be available soon.
Contact us with any questions.
Product manuals are being finalized and will be added shortly.
Reach out if you need assistance.
Coming soon.
